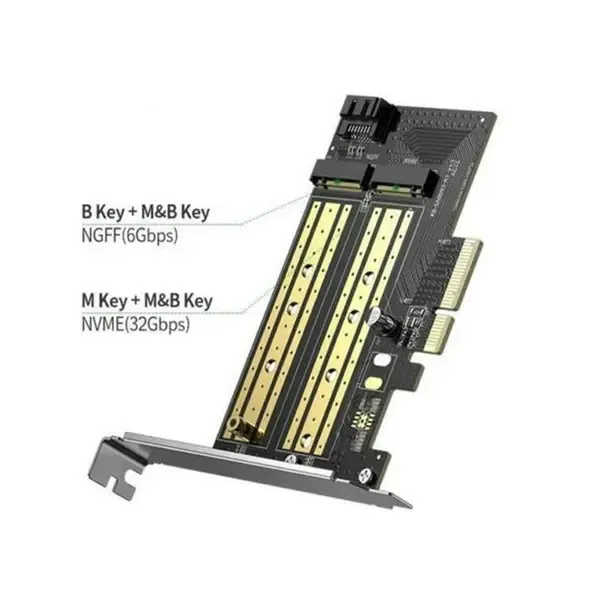

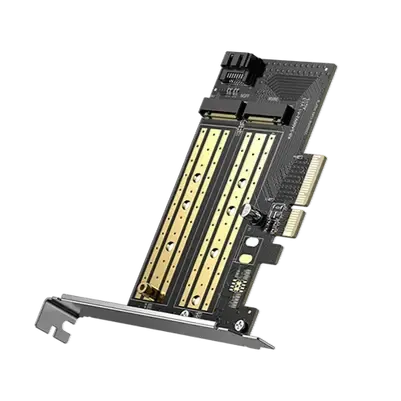

UGREEN M.2 M – KEY + M.2 B – KEY TO PCI – E 3.0 * 4 EXPENSSION CARD
2 sold in last 24 hours
₨ 2,499
The UGREEN M.2 M-Key + M.2 B-Key to PCI-E 3.0 x4 Expansion Card is a versatile dual-slot desktop storage solution designed to connect both NVMe and SATA M.2 SSDs simultaneously to your motherboard. Distributed by Keyphantom, this adapter features an M-Key slot running on a high-speed PCIe 3.0 x4 interface (up to 32Gbps) for NVMe drives, alongside a B-Key slot that connects via SATA 7-pin cable to support legacy SATA M.2 SSDs (up to 6Gbps). Supporting multiple drive lengths (2230 to 2280), gold-plated contacts, and dual mounting brackets, it is the ultimate expansion card for custom PC upgrades and data recovery.
- Dual M.2 Slot Design: Accommodates one M.2 NVMe (M-Key) drive and one M.2 SATA (B-Key / B+M Key) drive at the same time.
- Ultra-Fast 32Gbps NVMe Channel: PCIe 3.0 x4 lane interface delivers up to 32Gbps bandwidth for NVMe SSDs.
- SATA Interface Connectivity: Integrated B-Key slot routes via standard SATA cable (included/required) directly to motherboard SATA ports.

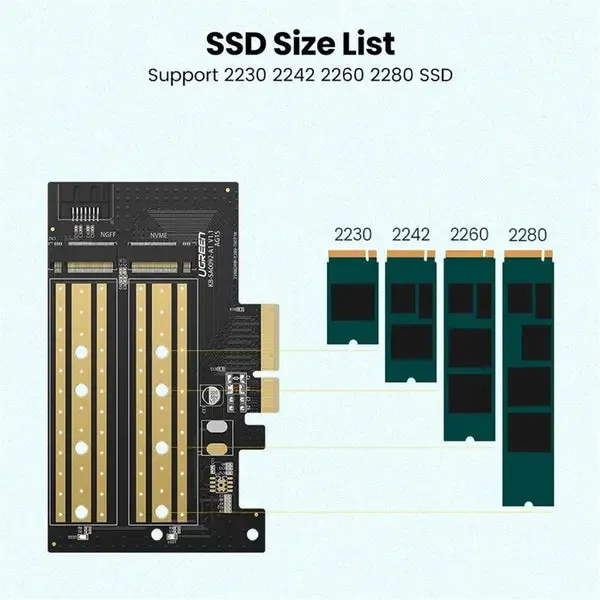

- Multi-Size SSD Support: Fits 2230, 2242, 2260, and 2280 form-factor M.2 drives across both slots.
- Gold-Plated Signal Protection: Immersion-gold PCB layer optimizes heat dissipation, structural durability, and electrical connection.
38people are viewing this right now
Estimate delivery times: 2-3 days.
Free shipping : On all orders over 5000.
Use code "W10KEYPHANTOM" | all discountApply on advance payment
Guarantee Safe Checkout:
Description
Description
UGREEN Dual M.2 to PCIe Card: Simultaneous NVMe & SATA Storage Expansion
The UGREEN M.2 M-Key + M.2 B-Key to PCI-E 3.0 x4 Expansion Card provides a comprehensive 2-in-1 desktop storage upgrade. Distributed by Keyphantom, this adapter board allows PC builders to run high-speed NVMe storage alongside affordable SATA M.2 drives using a single motherboard expansion slot.
Dual Protocol Support (NVMe & SATA)
This expansion adapter solves drive compatibility bottlenecks by housing two distinct M.2 interfaces on one board. The M-Key slot taps into the motherboard’s PCIe 3.0 x4 slot to power ultra-fast NVMe SSDs, while the B-Key slot uses a 7-pin SATA connector to interface directly with onboard SATA controllers.
Universal Form Factor Compatibility & Sturdy Build

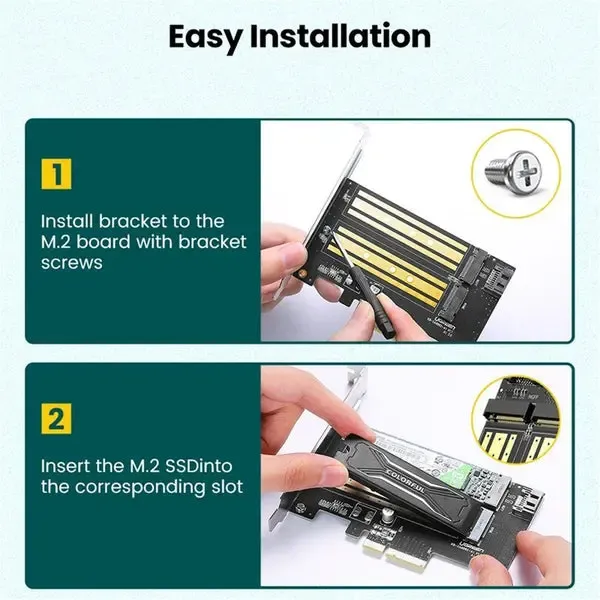

Built with high-grade PCB material and gold-plated contacts, the card ensures low data latency and maximum signal stability. Its multi-hole mounting layout accepts 2230, 2242, 2260, and 2280 drive sizes, while included full-height and half-height brackets ensure a seamless fit into full-size desktop towers and small-form-factor (SFF) PCs alike.
Technical Summary Table
| Feature | Specification |
| Model Name | UGREEN M.2 M-Key + M.2 B-Key to PCI-E 3.0 x4 Expansion Card |
| Model / SKU Number | 70504 / CM302 Dual Series |
| Brand | Keyphantom (UGREEN) |
| M-Key Slot Interface | PCIe 3.0 x4 (32Gbps Max) for M.2 NVMe SSDs |
| B-Key Slot Interface | SATA III 7-Pin (6Gbps Max) for M.2 SATA SSDs |
| Motherboard Slot Support | PCIe x4, x8, x16 Slots (PCIe 4.0 / 3.0 / 2.0 compatible) |
| Supported SSD Form Factors | Type 2230 / 2242 / 2260 / 2280 M.2 Drives |
| Simultaneous Drive Operation | Yes (Supports NVMe PCIe drive + SATA M.2 drive concurrently) |
| PCB Features | Immersion Gold PCB + Dual LED Status Indicators |
| OS Support | Windows 11 / 10 / 8 / 7, macOS, Linux (Plug & Play) |
| Included Accessories | Full & Low-Profile Brackets, Mounting Screws, SATA Cable |
