Ugreen M.2 NVMe SSD Enclosure, Tool-Free NVMe Enclosure, 10Gbps NVMe to USB Adapter with USB 3.2 Gen2, Aluminum M2 SSD Enclosure Supports M and B&M Keys and Size in 2230/2242 /2260/2280 SSDs
Couldn't load pickup availability
Estimate delivery times: 1-3 days .
Free shipping and returns: On all orders over 5000.
Pairs well with
The Ugreen M.2 NVMe SSD Enclosure, Tool-Free NVMe Enclosure, 10Gbps NVMe to USB Adapter with USB 3.2 Gen2, Aluminum M2 SSD Enclosure Supports M and B&M Keys and Size in 2230/2242 /2260/2280 SSDs is a portable external storage case designed to turn internal M.2 NVMe solid-state drives into ultra-fast USB-C drives. Distributed by Keyphantom, this adapter utilizes a high-speed USB 3.2 Gen 2 Type-C interface to deliver theoretical data transfer rates up to 10Gbps (approx. 1000 MB/s). Built with an aluminum alloy heat-dissipating housing, silicone protective sleeve, and a tool-free installation mechanism, it supports both M-Key and B&M Key NVMe drives across standard 2230, 2242, 2260, and 2280 form factors for fast plug-and-play performance.
- 10Gbps USB 3.2 Gen 2 High-Speed Output: Transfers large 1GB files in approximately one second with UASP acceleration protocol.

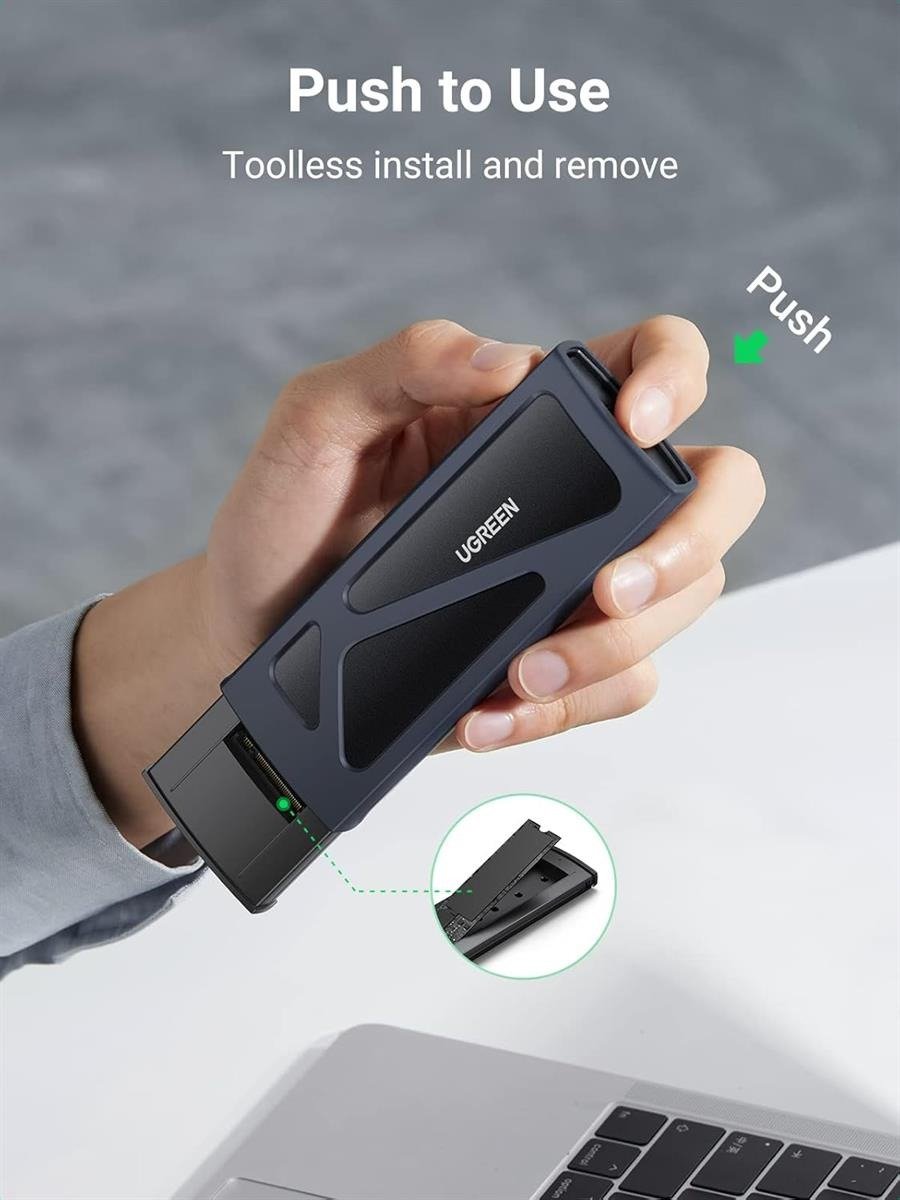

- Tool-Free Quick Installation: Slide-and-latch button mechanism allows drive installation and replacement without screws or screwdrivers.
- Premium Aluminum Alloy Thermal Control: Sturdy aluminum housing and included thermal conductive pad rapidly channel drive heat away during continuous read/write cycles.

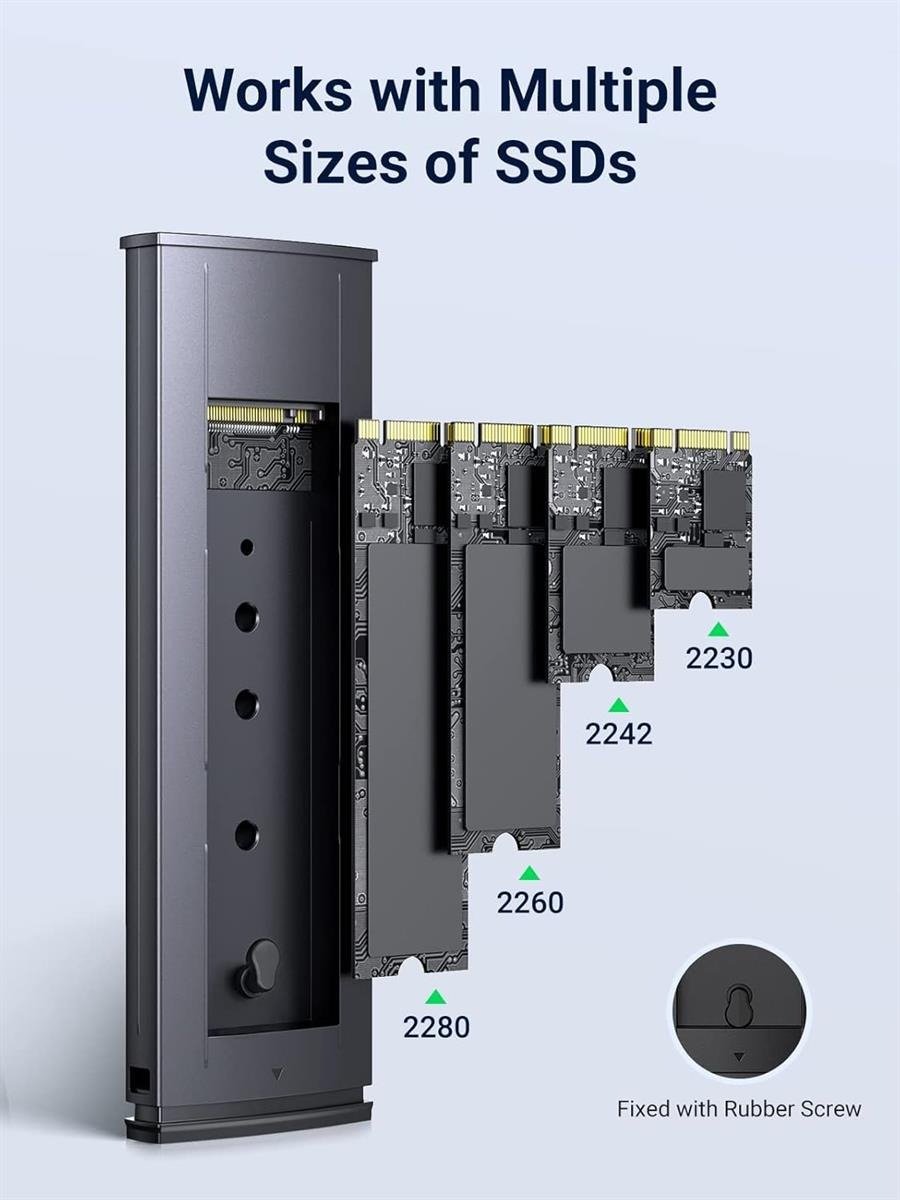

- Universal M-Key & B&M Key Support: Accommodates M.2 NVMe PCIe SSDs in standard 2230, 2242, 2260, and 2280 sizes (up to 4TB).
- Broad Device Compatibility: Plugs directly into modern MacBooks, Windows laptops, iPad Pros, Android OTG devices, and game consoles (PS5 / Xbox).
UGREEN Tool-Free M.2 NVMe Enclosure: 10Gbps High-Speed Data Transfer & Thermal Cooling
The Ugreen M.2 NVMe SSD Enclosure, Tool-Free NVMe Enclosure, 10Gbps NVMe to USB Adapter with USB 3.2 Gen2, Aluminum M2 SSD Enclosure Supports M and B&M Keys and Size in 2230/2242 /2260/2280 SSDs converts internal M.2 NVMe drives into portable external drives for backups, media editing, and gaming storage expansion. Distributed by Keyphantom, this enclosure combines high-speed USB 3.2 throughput with efficient passive thermal management.
10Gbps USB 3.2 Gen 2 Speeds & UASP Protocol
Equipped with a USB 3.2 Gen 2 Type-C interface, this adapter achieves transfer rates up to 10Gbps. Integrated UASP (USB Attached SCSI Protocol) and TRIM commands optimize drive performance while reducing host CPU load during heavy file operations.
Tool-Free Mounting & Efficient Passive Heat Control

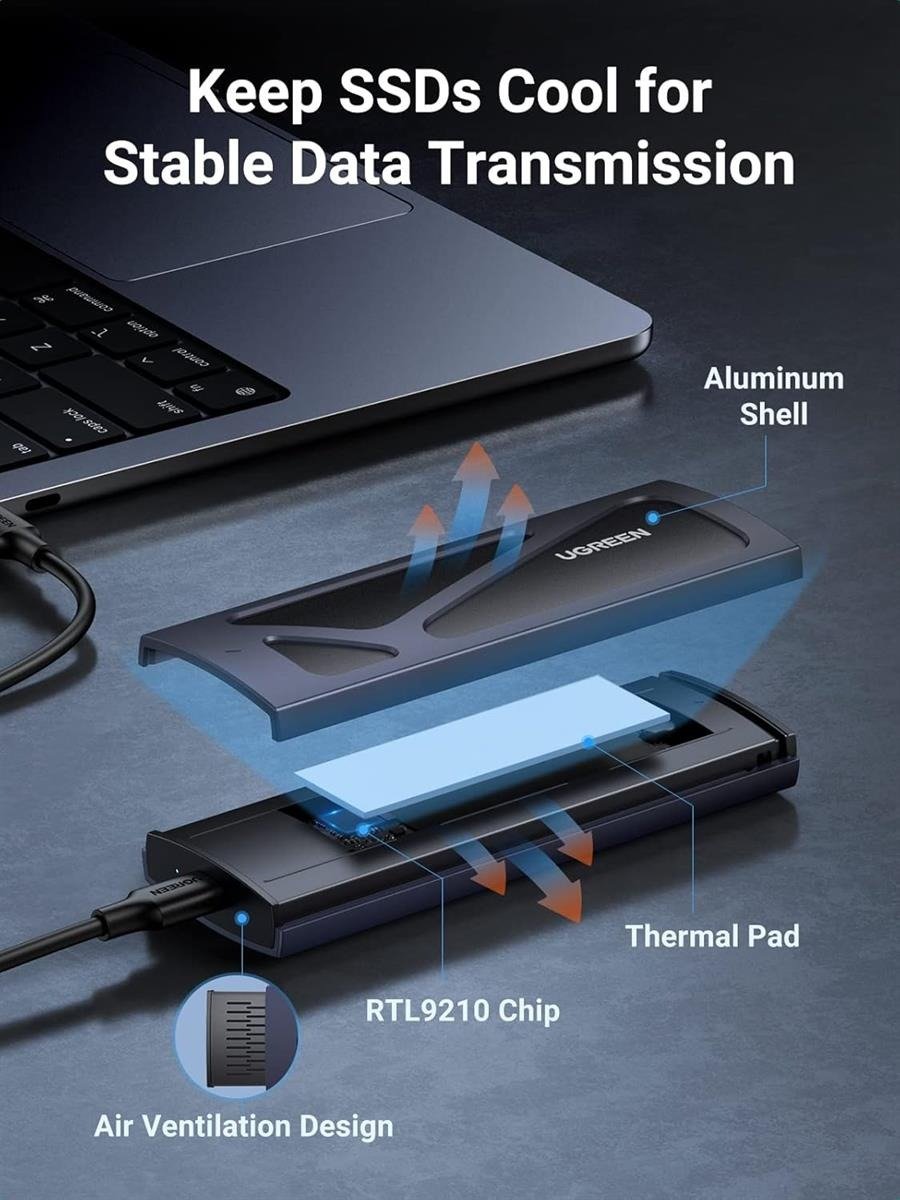

The tool-free sliding cover and silicone mounting pegs simplify SSD installation. Constructed from high-density aluminum alloy with an included thermal pad, the chassis serves as a passive heatsink, preventing thermal throttling on high-performance NVMe controllers during extended usage.
Technical Summary Table
| Feature | Specification |
| Model Name | Ugreen M.2 NVMe SSD Enclosure, Tool-Free NVMe Enclosure, 10Gbps NVMe to USB Adapter with USB 3.2 Gen2, Aluminum M2 SSD Enclosure Supports M and B&M Keys and Size in 2230/2242 /2260/2280 SSDs |
| Model / SKU Number | 10902 / CM400 Series |
| Brand | Keyphantom (UGREEN) |
| Host Interface | USB 3.2 Gen 2 Type-C Female (Thunderbolt 3/4 Compatible) |
| Drive Interface Support | M.2 NVMe PCIe Protocol (M-Key / B+M Key) |
| Maximum Transfer Rate | Up to 10 Gbps (Theoretical speed ~1000 MB/s) |
| Supported M.2 Form Factors | 2230 / 2242 / 2260 / 2280 M.2 SSDs (Up to 4TB Capacity) |
| Material Construction | CNC Aluminum Alloy Shell + Protective Silicone Sleeve |
| Installation Method | Tool-Free Slide & Lock Button Mechanism |
| Protocol Support | UASP / TRIM / S.M.A.R.T Command Protocols |
| Included Accessories | USB-C to USB-C Cable (10Gbps), Thermal Pad, Rubber Pegs |
| OS & Device Compatibility | macOS, Windows 11 / 10 / 8, Linux, Chrome OS, iPadOS, Android (OTG) |
